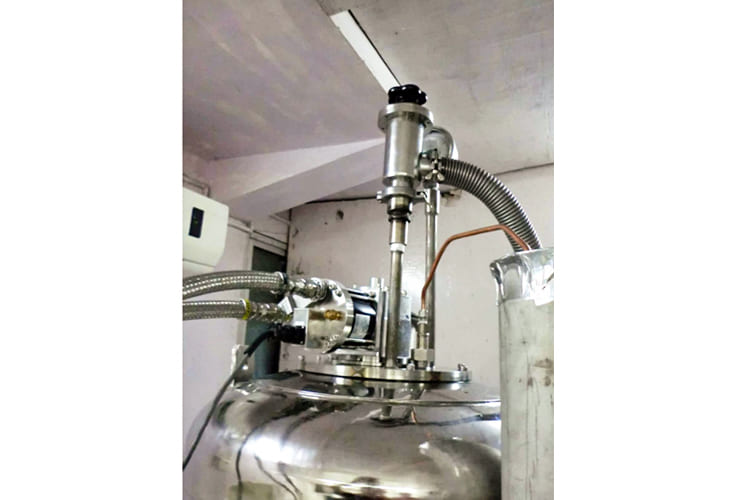

Portable Nitrogen Liquefier

Technical Data

MODEL NL-10  NL-20 NL-40 NL-60 NL-120 NL-240
LIQUEFICATION RATE >10 Litres/Day >20 Litre/Day >40 Litre/Day >60 Litre/Day >120 Litre/Day >240 Litre/Day
DEWAR CAPACITY 60 Litres 120 Litres  240 Litres  300 Litres 500 Litres 1000 Litres
AVAILABLE COMPRESSOR TYPES Air cooled/Water cooled Air cooled/Water cooled Water cooled Water cooled Water cooled Water cooled
TYPICAL POWER CONSUMPTION & VOLTAGE RANGE 3.5-3.9 KW 3.5-3.9 KW 6.5-7.5 KW 6.5-7.5 KW 14-16 KW 28-32 KW
INDUSTRIAL QUALITY N2 >99% >99% >99% >99% >99% >99%

Liquid Nitrogen is mostly supplied with tankers and stored in Storage tanks. Most of time due to delay in delivery of Liquid Nitrogen and also small need it's not feasible for small R & D centres and small institutes to get Liquid nitrogen on time.

CRYOGAS Portable Nitrogen liquefiers provides solution for the prevailing problem on usage of small amount of Nitrogen. Portable Nitrogen liquefiers are specifically made for lab based application, also customizable with additional ports and high-efficiency storage Dewars with transfer lines.

CRYOGAS Portable Nitrogen Liquefiers uses GM type coldhead from Sumitomo Heavy Industries, Japan.

Features of Portable Nitrogen liquefier:

  • Liquefaction rates from 10-240 litres per day
  • 24 X 7 Fully Automatic operation
  • Level probe installed on Dewar
  • Optional Nitrogen Gas generator
