Cryostats

Technical Data

CRYOSTAT 77 K 10 K 4.2 K
COOLING POWER OPTIONS (W) 34W  & 175W  2.5W & 5.4W  0.1W, 0.5W, 1W, 1.25W, 1.5W, 1.8W
WORKING TEMPERATURE RANGE <77K to 325K <10K to 325K <4.2K to 352K
CRYOGAS TYPE * Optical or Non-optical

* Optical or Non-optical

* Low Vibration

* Optical or Non-optical

* Low Vibration

* Ultra High Vacuum

* Exchange Gas

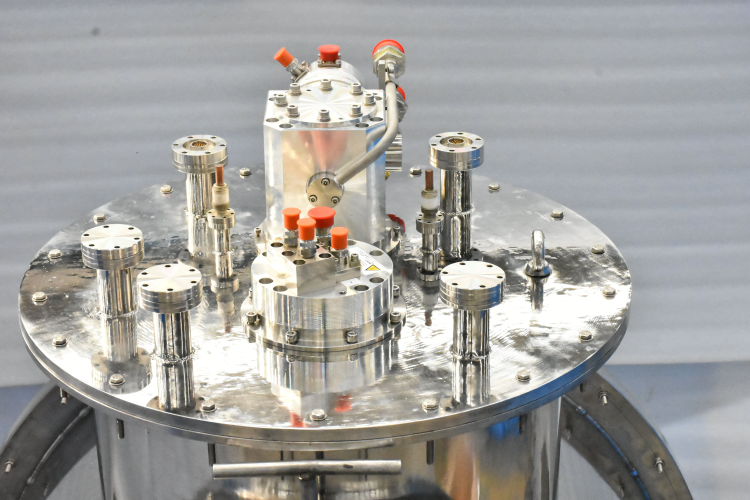

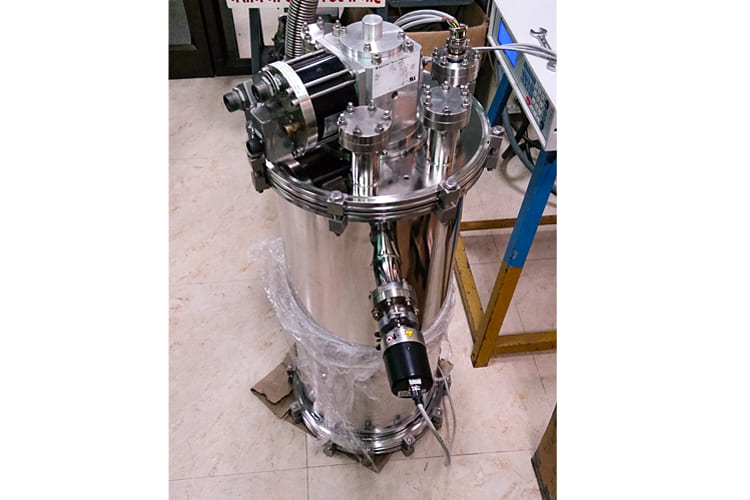

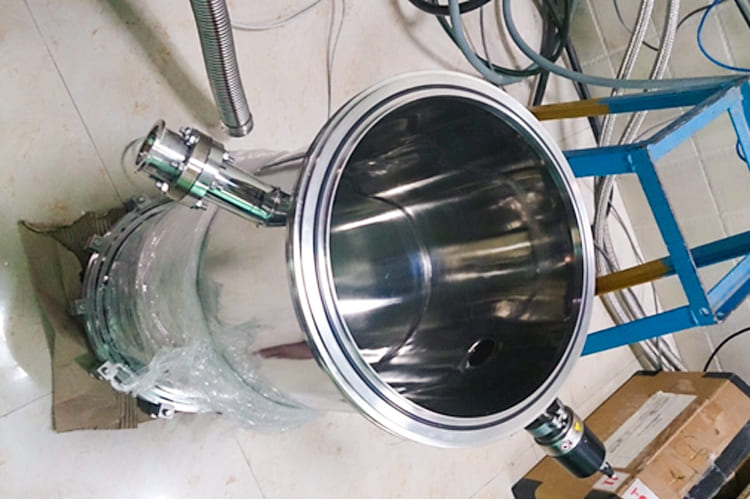

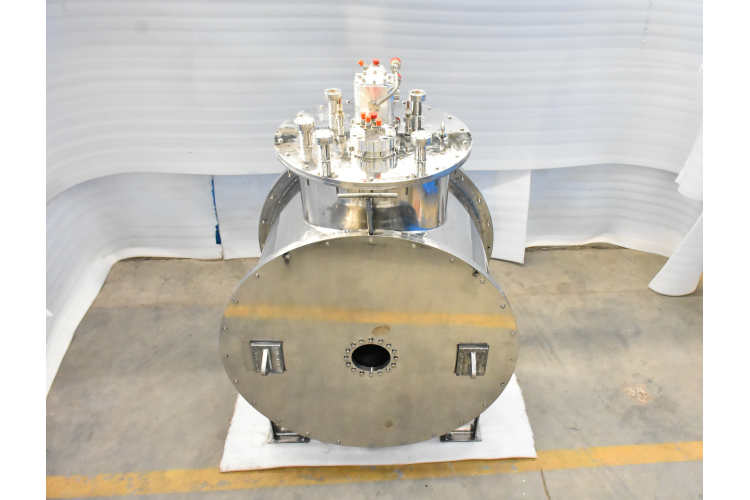

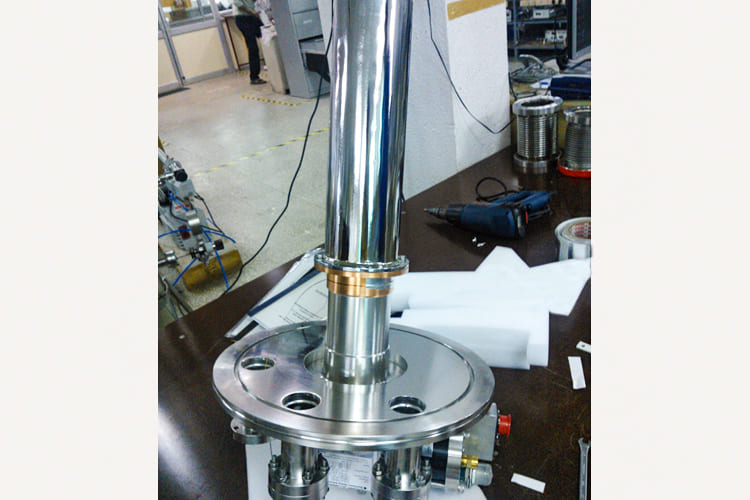

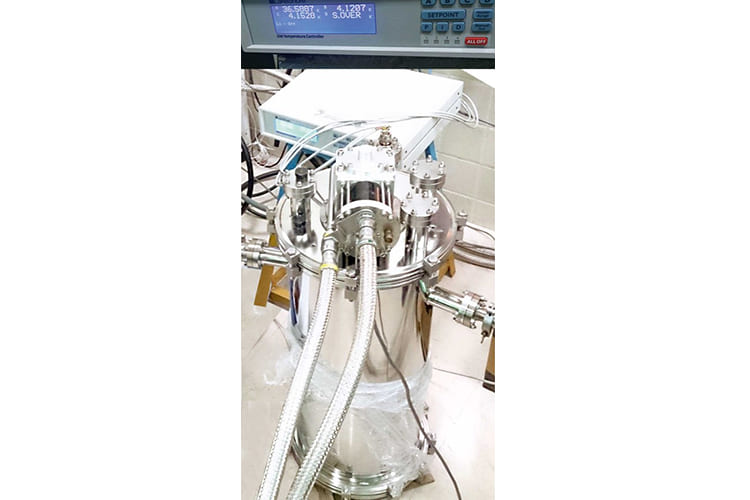

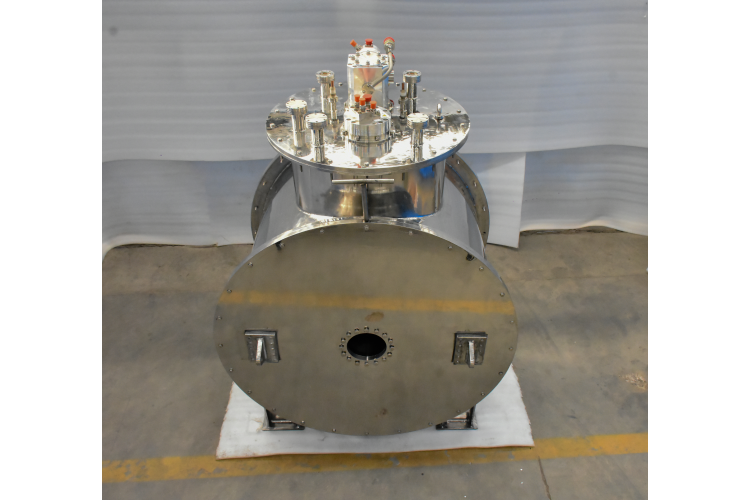

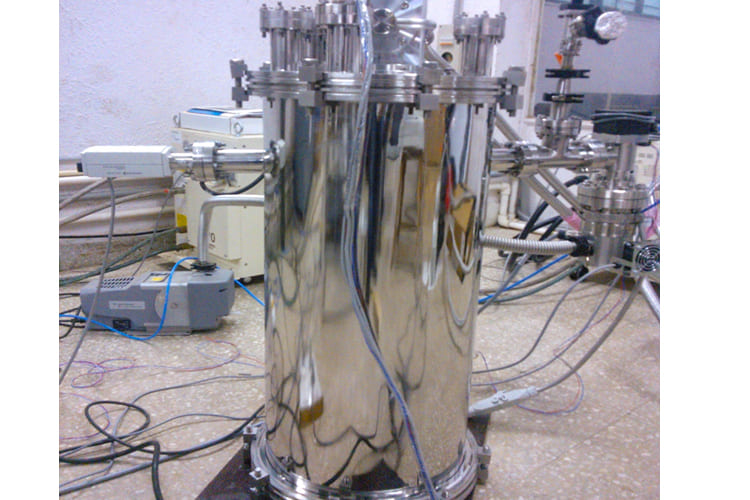

Cryostats are mainly Variable Temperature Closed Cycle Refrigerator Systems with Sample in Vacuum Mounting. Easy sample access is possible through vacuum shroud and radiation shield. The temperature sensor is installed at the sample mount to offer accurate temperature readings.

The Cryostats models are available with a Single-Stage or Two stage Gifford-McMahon (GM) cryocoolers or Pulse tube cryocoolers from Sumitomo Heavy Industries (SHI).

The Cryostat systems have an operating temperature range of <4 K to 325 K, with optional high or low temperature stages available. The systems are available in numerous configurations including:

  • Optical or Non-Optical
  • Low Vibration
  • Ultra high vacuum
  • Exchange gas
