Technical Data

MODEL	TT (Fixed Chassis Cryognic Tankers) TT-LNG
CONFIGURATION	Mounted on Fixed Chassis Trucks
STANDARD CAPACITIES	3, 7, 18, 24, 28 KL
MAWP BAR(G)	3, 7, 18 Bar(g)
DESIGN TEMPERATURE	-196 °C to 55 °C
APPLICABLE DESIGN CODES	ASME, EN13458-2 and Other International Codes CE Marking & U stamp offered on request
INSULATION	Multi-layer Vacuum Super Insulation
MOUNTING	For customers in India, CRYOGAS mounts the tank at shop. For exports CRYOGAS provides chassis mounted liquids as optional.
RAW MATERIALS	Inner Vessel & Piping: Stainless Steel Outer Vessel : Carbon Steel, SS304 (optional)

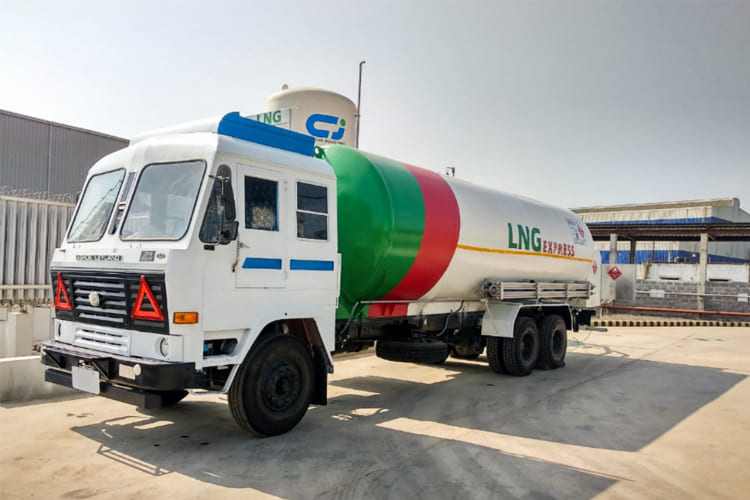

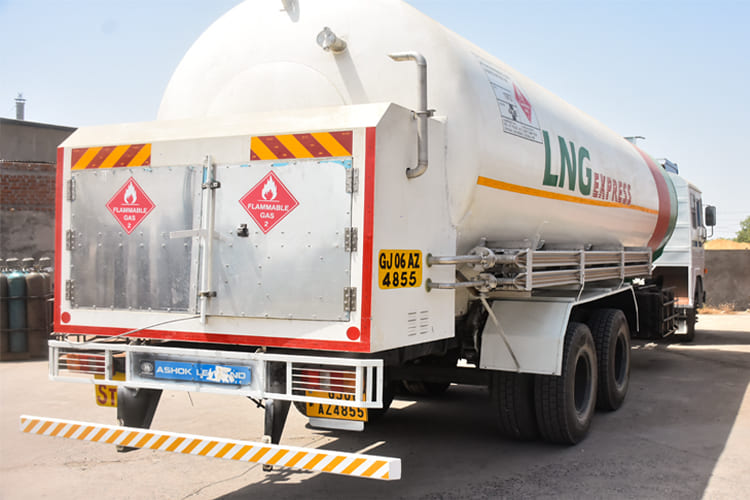

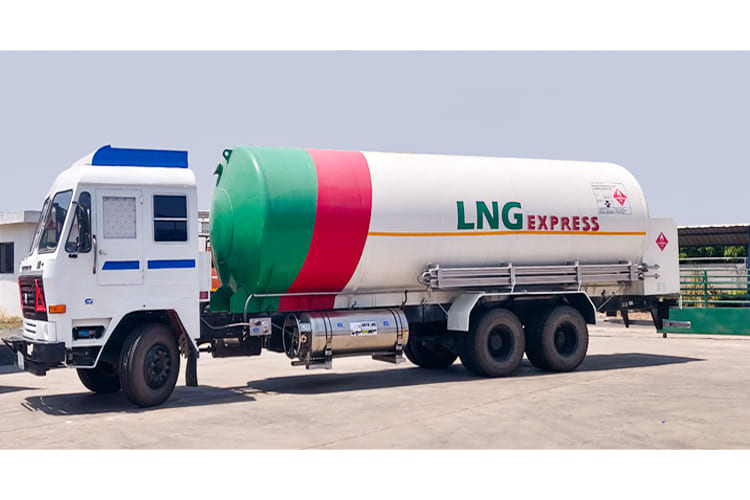

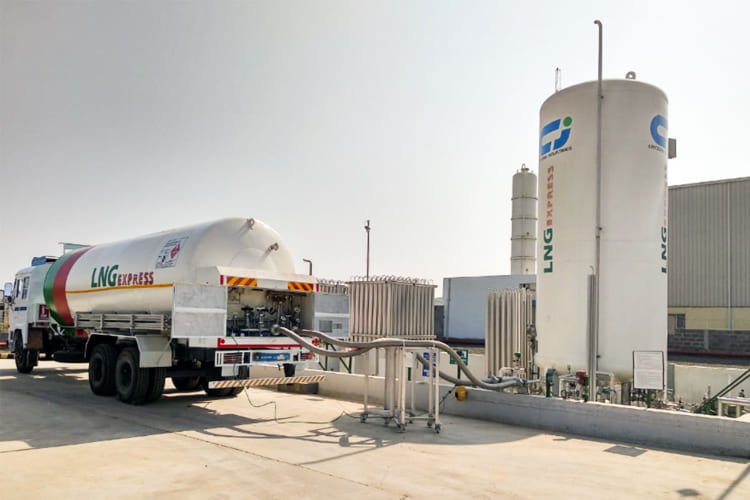

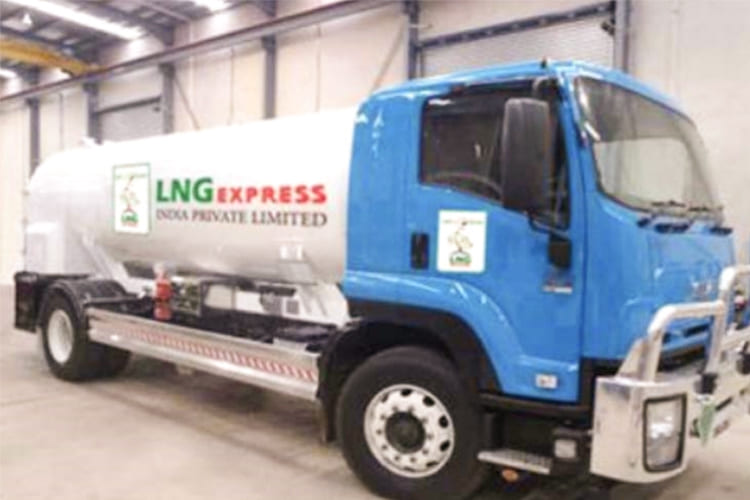

Multi-Layer Vacuum Super Insulated LNG Transport Tankers are double walled Transport Tanks designed for safe, efficient & economical transportation of LNG over short to medium distances.

Standard range of CRYOGAS make Fixed Chassis LNG Transport tankers are available from 3,000 to 28,000 Litre or higher with operating pressure range 7/13/18 Bar (g).

Such Cryogenic Tankers are optimised for mounting on Fixed Chassis Trucks which helps payload maximization.

Fixed Chassis design provides great manoeuvrability even on smaller and challenging roads with robust operations.

While inner vessel is Stainless Steel and Carbon Steel outer vessel CRYOGAS Equipment utilizes Stainless Steel at strategic points on the outer vessel to enhance the life of tank like lifting lugs, transport legs and nozzle openings.
