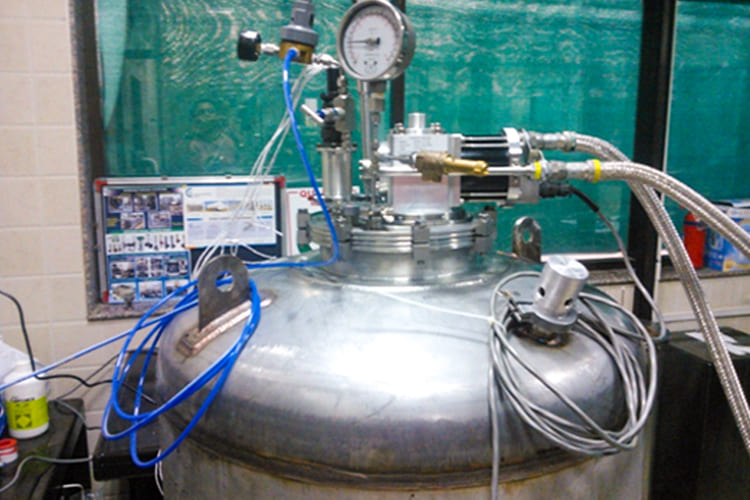

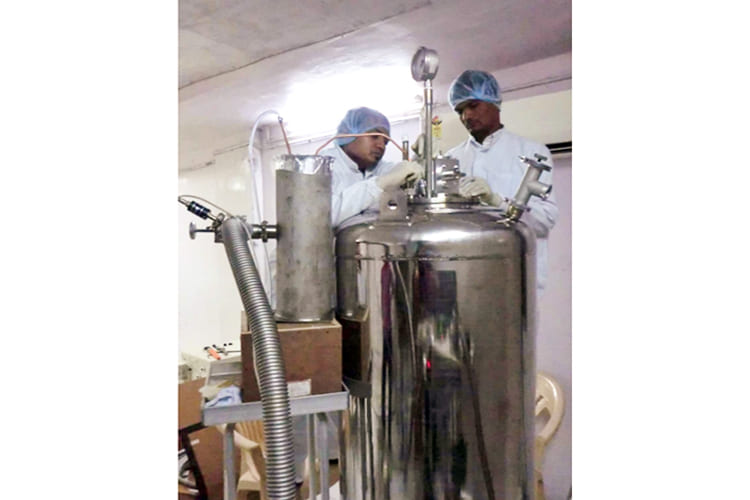

Portable Helium Liquefier

Technical Data

MODEL HEL-10  HEL-15  HEL-25 HEL-35
LIQUEFICATION RATE 10-12 Litres/Day 15-20 Litre/Day 25-30 Litre/Day 35-40 Litre/Day
DEWAR CAPACITY 60 Litres 150 Litres  200 Litres  250 Litres
AVAILABLE COMPRESSOR TYPES Air cooled/Water cooled Air cooled/Water cooled Air cooled/Water cooled Air cooled/Water cooled
TYPICAL POWER CONSUMPTION & VOLTAGE RANGE 6.5-7.5 KW 6.5-7.5 KW 6.5-8 KW 13-15 KW
INDUSTRIAL QUALITY He 99.95%  99.95%  99.95%  99.95%

The world’s helium supply is finite and irreplaceable. Growing demand in use of Liquid helium worldwide has increased pressure on costs and supply . One of the promising solutions is recovery and recycling of helium by using small Helium liquefaction and Recondensing systems.

CRYOGAS Portable helium liquefiers provides solution for the prevailing problem on usage of small amount of helium. Portable Helium liquefiers are also customization with additional ports and high-efficiency storage Dewars with transfer lines.

CRYOGAS Portable Helium Liquefiers uses GM type coldhead and Pulse tube coldhead from Sumitomo Heavy Industries, Japan.

Features of Portable Helium liquefier:

  • Liquefaction rates from 10-40 litres per day
  • Collect and re- liquefy boil-off helium gas
  • Customized system solution
