Cryogenic safety valves are manufactured primarily not only from stainless steel but also in brass and bronze. Safety valves are available in sizes from DN6 to DN50 and secure pressures up to 0.2 to 50 bar, at operating temperatures of -270°C to +225°C.
MAKE
HEROSE GMBH
TYPE OF VALVE

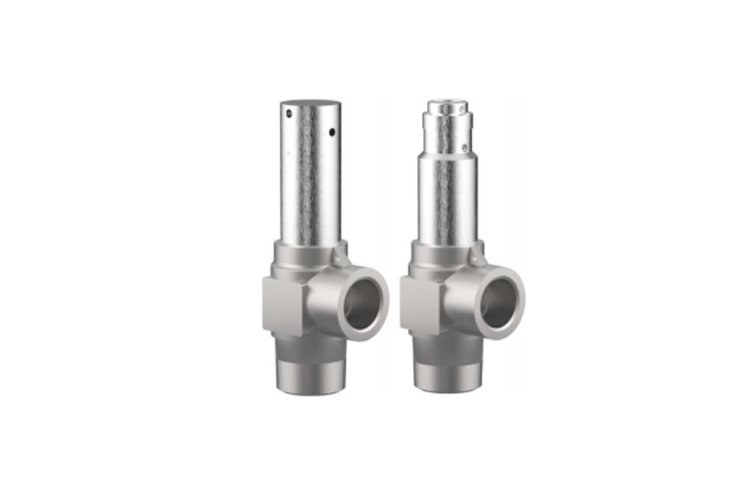

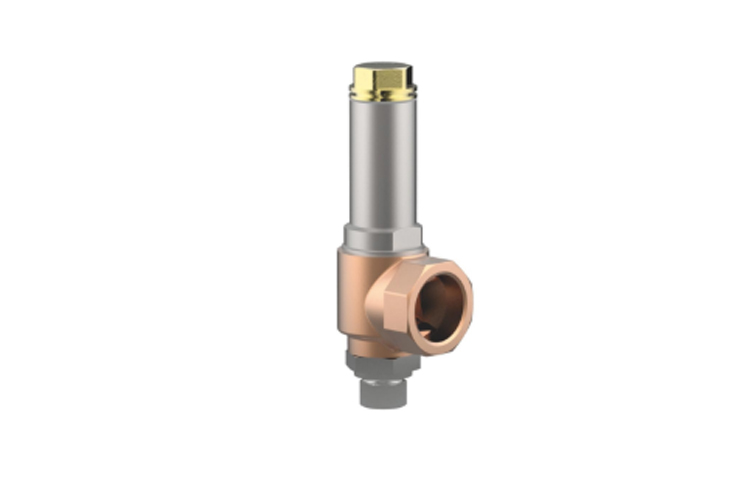

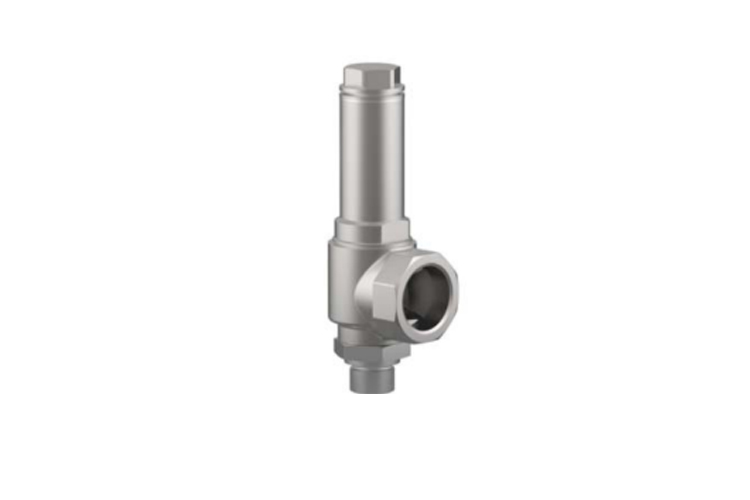

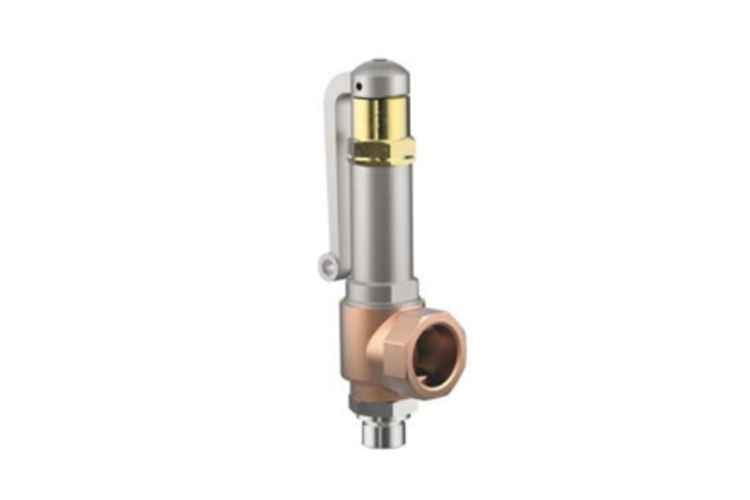

Cryogenic Safety Valve
DESCRIPTION
Media : Liquefied Gas such as Oxygen, Nitrogen, Argon, Carbon Dioxide, LNG etc. Size : DN6 (1/4”) to DN50 (2”) Temperature : - 270°C (-454°F) to + 225°C (+437°F) Pressure : 0.2 bar (3 psi) to 50 bar (725 psi) End connection : Threaded (NPT, BSP) MOC : Bronze, Brass & Stainless Steel Cleaning : Cleaned and degreased for Oxygen Service
