High Pressure Ambient LNG Vaporizers

Technical Data

MODEL HQF-LNG
TYPES OF VAPORIZATION/RE-GASIFICATION   High Pressure Natural Draft LNG Vaporization
 OPERATING FLUIDS LOX, LIN, LAR, LNG, LHe, LH2, LCO2
CAPACITY OF EACH VAPORIZERS MODULE 50 to 5,000 Nm3/Hour & higher on request
BANK OF VAPORIZERS Two or more vaporizers are systematically clubbed to operate in series of parallel for higher flow rates and duty cycles.
RR PRESSURE RANGE 150, 200, 250, 300, 400, 600 bar(g) as standard & higher on request
VAPORIZER CONSTRUCTION Aluminium With SS lining
DESIGN CODE ASME, U Stamp, PED
MULTIFOLD CONFIGURATION  Single pass all series, parallel series combination based on flow and pressure drop
FRAME CONSTRUCTION  Aluminium alloy 6061 T6, SS304 (CS on request)

LNG High Pressure Cryogenic Vaporizers from CRYOGAS equipment are manufactured using more than 20 years of robust experience and proven track record of supplying more than 1,000 High Pressure Cryogenic Units in operation worldwide.

At geographical locations where Natural Gas Pipeline is not available, CRYOGAS installs LNG based LCNG stations are utilized to produce high pressure LCNG and popularly used for applications like commercial, automobile and industrial requirement.  For refilling LNG cylinders at LNG Stations, High Pressure Lined LNG Cryogenic Vaporizers are most popular equipment using Natural Draft Cryogenic vaporization technique.

SS304 lines with high quality alloyed aluminium fins have proven their worth upto 700 bar re-gasification.

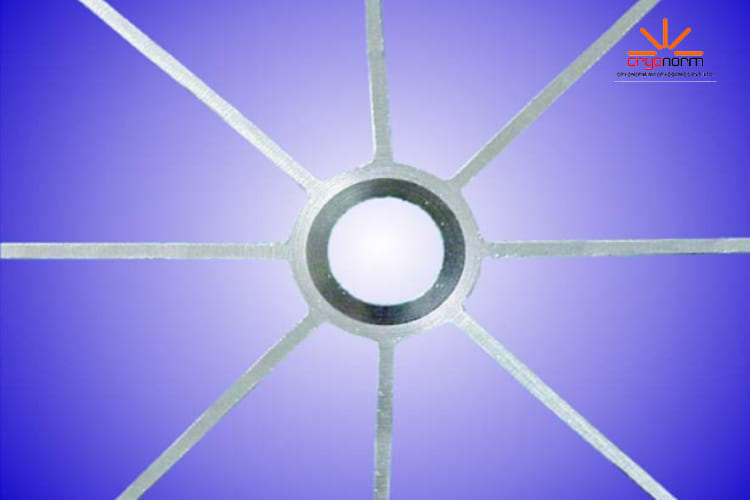

CRYOGAS High Pressure Vaporizers are supplied with SS liner hydraulically expanded to provide full contact between Fin inner surface & liner profile.

ZERO air-gap between liner & fins ensures life long full performance LNG high pressure re-gasfication.

CRYOGAS also offers inter connecting LNG & CNG piping precisely designed while taking care of contraction and expansion w.r.t. stress analysis.
